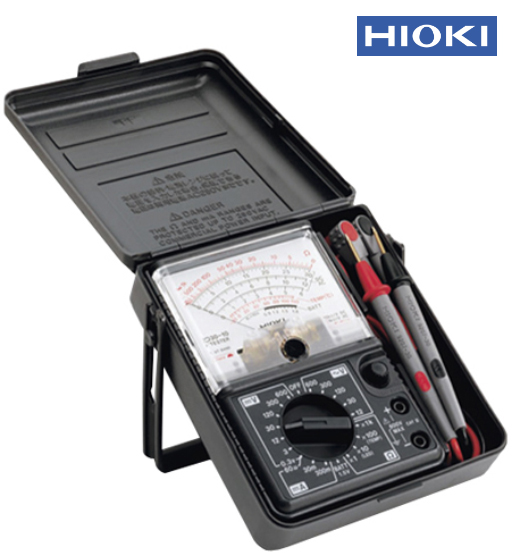

The Hioki 3030-10 is an analog multimeter that measures voltage, current and resistance, with robust construction that withstands a 1 meter drop onto a concrete floor.

Key Features

• Drop proof design withstands drop onto a concrete floor from a height of 1 meter
• LED check, Battery check support

Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)

DC voltage range

• 0.3 V (16.7 k?/V), 3/12/30/120/300/600 V (20 k?/V)
• Accuracy: ?2.5 % f.s. Max. rated voltage: 600 V

AC voltage range

• 12 V (9 k?/V) Accuracy: ?4 % f.s.
• 30/120/300/600 V (9 k?/V) Accuracy: ?2.5 % f.s.
• Average rectifier effective value, Max. rated voltage: 600 V

DC current range

• 60 ?A/30 m/300 mA (300 mV internal voltage drop)
• Accuracy: ?3 % f.s.

Resistance range

• 0 to 3 k? (center scale 30 ?), R ? 1, R ? 10, R ? 100, R ? 1 k
• Accuracy: ?3 % of scale length

Battery check

• 0.9 to 1.8 V, load resistance 10 ?, Accuracy: ?6 % f.s.

Temperature scale

Note: The 3030-10 includes a temperature measurement scale, but because the optional Thermister Temperature Probe 9021-01 has been discontinued, the scale is not available for new customers.

Power supply

For resistance measurement range, R6P (AA) ?2 batteries

Dimensions and mass

• 95 mm (3.74 in) W ? 141 mm (5.55 in) H ? 39 mm (1.54 in) D, 280 g (9.9 oz)

Accessories

• Test Lead L9207-30 ?1
• Spare fuse ?1
• R6P (AA) manganese batteries ?2
• Instruction manual ?1
• Carrying case 9390 ?1
