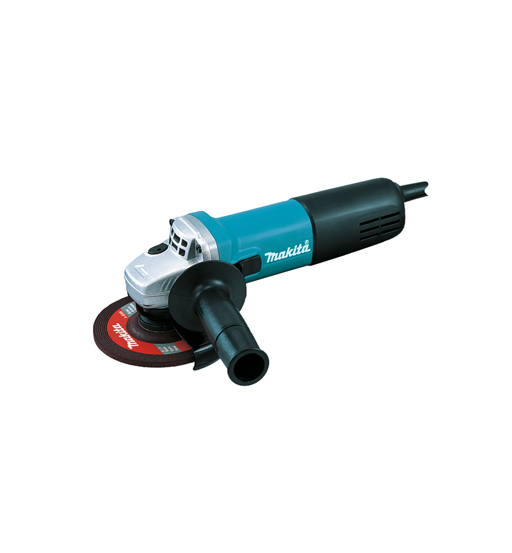

Compact tool for cutting and grinding. A small angle grinder with 840 W motor and 125 mm wheel. Labyrinth channel construction protects the armature and the field coil from impurities in the cooling air. Equipped with a paddle switch.

TECHNICAL SPECIFICATIONS

• Maximum Output Power: 840 W
• No load speed: 11 000 min-?
• Spindle Thread: M14
• Grinding Disc Diameter: 125 mm
• Bore (B): 22, 23 mm
• Power Supply Cord: 2.5 m
• Grip: Yes
• Sound Power Level (LWA): 97 dB (A)
• Sound Pressure Level (LpA): 86 dB (A)
• Noise Uncertainty (K Factor): 3 dB (A)
• Vibration Level (3 axes), Sanding: 9.0 m/s?
• Vibration Uncertainty (K Factor): 1.5 m/s?
• Weight without Cable (EPTAProcedure 01/2003): 1.8 – 3.0 kg
• Product Dimensions (L x W x H): 271 x 139 x 106 mm

USER BENEFITS

• Reliable machined gears provide twice or more longer service life
• Compact design with small diameter barrel and lightweight for added comfort
• Labyrinth construction seals and protects the drive gear and bearings from contamination for longer tool life
• Push button spindle lock for operator convenience
• Double insulated
• Large paddle switch for easy operation right or left handed
